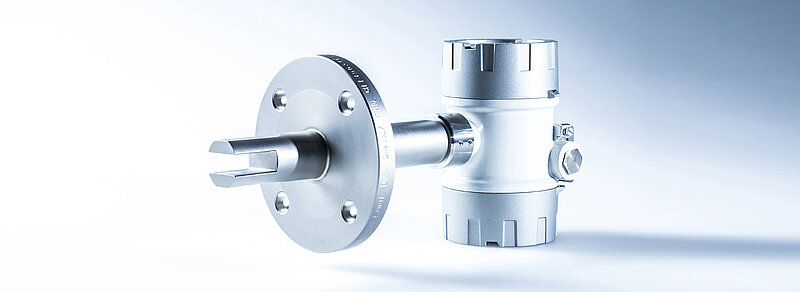

Immersion sensor 40-40 Ex


Robust, precise, maintenance-free

Parameter Value
temperature of liquid standard: -20 °C to 120 °C
optional: to 150 °C
pressure standard: 16 bar
optional: to 500 bar
sensor material standard: stainless steel or Hastelloy
optional: Titanium, Tantalum, Zirconium, Monel and other
process connection standard: flange DN 50 or ANSI 2"
optional: other on request
housing process housing IP65
diameter of sensor head 40 mm
diameter of sensor bar 40 mm
immersion length standard: 92 mm,
optional: 150 mm, 250 mm, 500 mm, 1000 mm, 1500 mm, 2000 mm
explosion proof yes (ATEX, IECEx, FM)
supply 24 VDC, 3 W

Setting standards
in liquid analysis.
