SENSORS

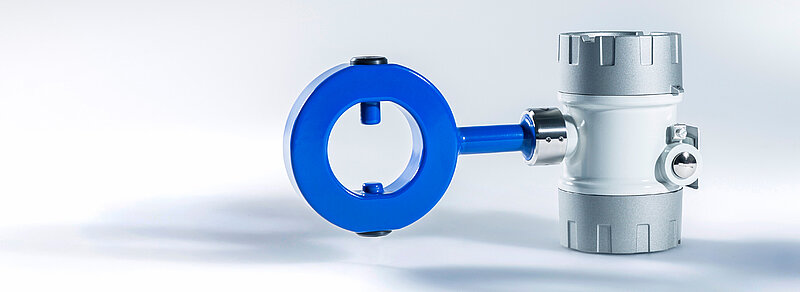

Flange sensor 80 Halar/PFA
Robust, precise, maintenance-free
| Parameter | Value |
| temperature of liquid | Halar sensor: -20 °C to 100 °C PFA sensor: -20 °C to 130 °C |
| pressure | standard: 16 bar optional: to 500 bar |
| sensor material | standard: Halar or PFA coating |
| process connection | standard: intermediate flange DN 80 |
| housing | process housing IP65 |
| nominal diameter | 80 mm |
| intermediate length | 30 mm |
| explosion proof | optional ATEX & IECEx |
| supply | 24 VDC, 3 W |
