SENSORS

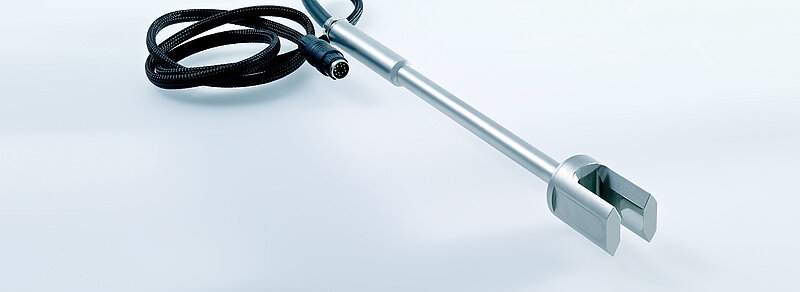

Immersion sensor 40-14 Lab
Robust, precise, maintenance-free
| Parameter | Value |
| temperature of liquid | standard: -20 °C bis 120 °C optional: bis 200°C |
| pressure | standard: 16 bar |
| sensor material | standard: stainless steel optional: Hastelloy, Titanium, Tantalum, Zirconium, Monel and other |
| process connection | standard: no optional: other |
| housing | no |
| diameter sensor head | 40 mm |
| diameter sensor bar | 14 mm |
| immersion length | standard: 50 mm, optional: other |
| explosion proof | no |
| supply | 24 VDC, 3 W |
This sensor is also used in the system LiquiSonic® Lab.
Lab Sensor
